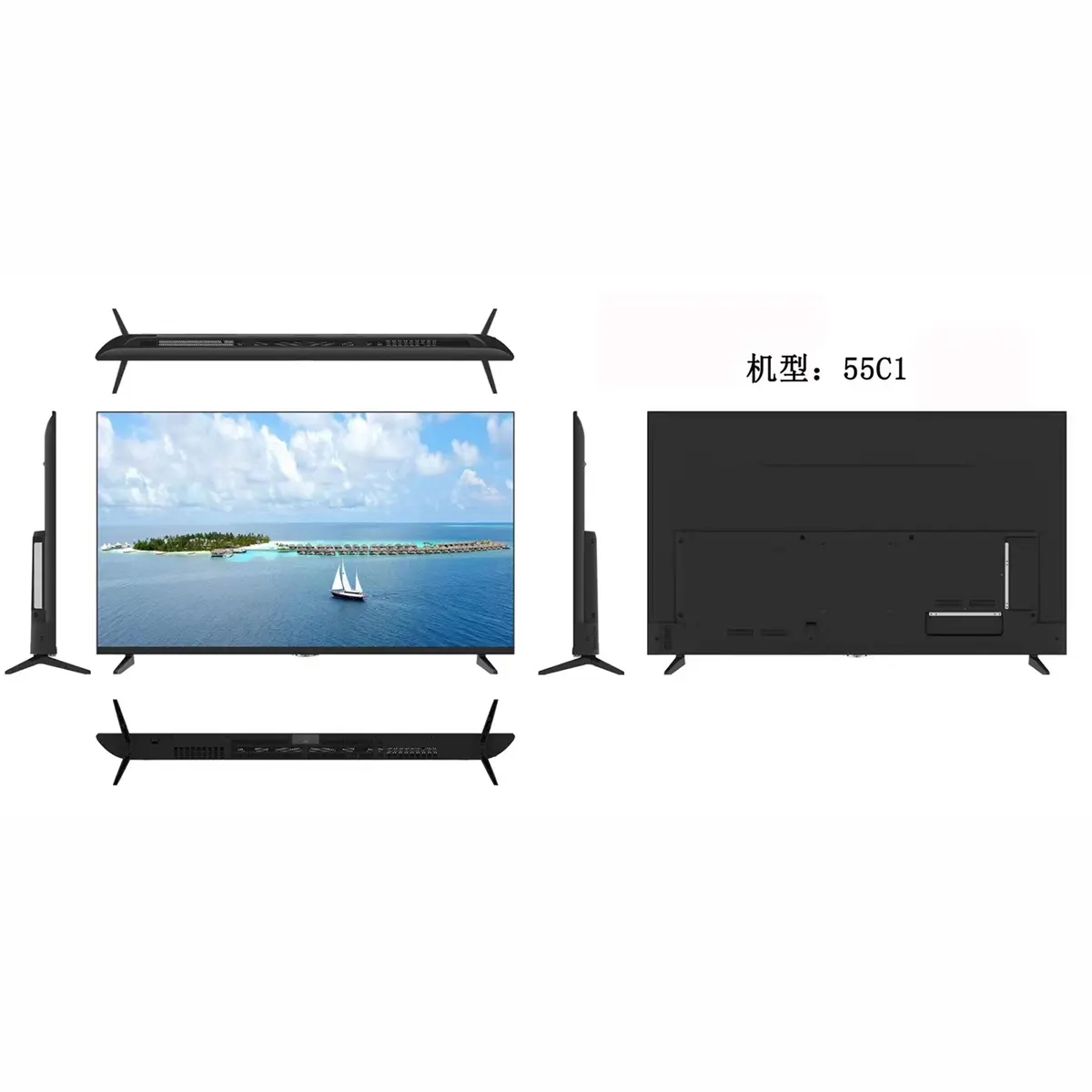

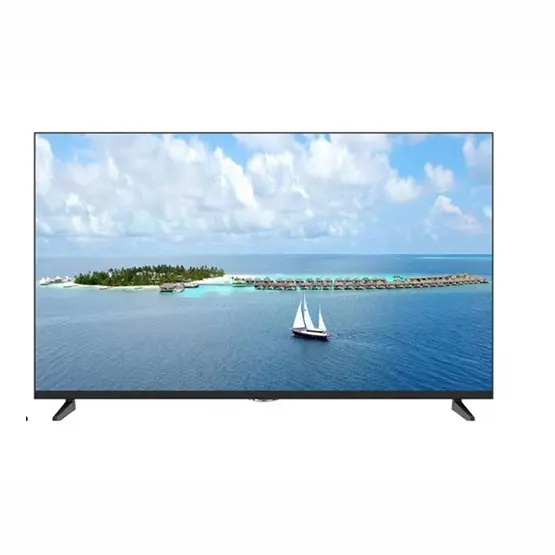

High-Quality 55-inch 4K QLED Android Smart TV with Frameless Design , Dolby Vision, Flagship Model for Home, Commercial, and Export Use Factories, Manufacturer
Product Description
Product Specifications & Parameters
| Project | 4K Flagship Version | 1080P Economy Version |
|---|---|---|
| Screen Size | 55 inches (approx. 139.7 cm diagonally) | 55 inches |
| Physical Resolution | 3840 × 2160 (4K UHD) | 1920 × 1080 (Full HD) |
| Pixel Density | 80ppi | 40ppi |
| Recommended Viewing Distance | 2.5 - 4.0 meters | 4.0 - 5.0 meters |
| Panel Type | IPS Hard Screen | VA Soft Screen / IPS Hard Screen |
| Static Contrast | 3000:1 ~ 5000:1 | 125:1 |
| Dynamic Contrast | 50000:1+ | 30000:1 |
| Screen Brightness | 300 - 350 cd/m² | 250 cd/m² |
| Refresh Rate | 60Hz (120Hz in select high-end versions) | 60Hz |
| Response Time | 6ms | 6.5ms |
| Viewing Angle | 178° (H) / 178° (V) | 178° (H) / 178° (V) |
| Color Gamut Coverage | Quantum Dot - 100% Color Gamut | sRGB 96% |
| Grayscale Depth | 10-bit (1.07 Billion Colors) | 8-bit (16.7 Million Colors) |
| Backlight Technology | Direct-type LED / DLED | Direct-type LED |
| HDR Support | HDR10+, HLG, Dolby Vision | HDR10 (Software Simulation) |
| Eye Protection | Low Blue Light Mode, DC Flicker-Free Dimming | Low Blue Light Mode |
Intelligent System & Hardware Performance
| Components | Detailed Specifications |
|---|---|
| Operating System | Android TV / Google TV (Supports 30+ OSD languages) |
| Kernel | Linux 4.9 |
| CPU | Quad-core ARM Cortex-A53 |
| GPU | Mali-G52 MP2 |
| RAM | 2GB DDR |
| Storage Space | 16GB eMMC |
| Wi-Fi | Dual-band 2.4GHz + 5GHz |
| Ethernet | RJ45 100Mbps / 1Gbps Wired Network Port |
| Bluetooth | Bluetooth 5.0 / 5.2 |
| Screen Casting Protocol | Miracast, DLNA, Apple AirPlay, Google Cast |
| Boot-up Ads | None (Pure Global Version) |
| CEC Functions | Supports HDMI CEC and ALLM |
- Freely install app stores such as Google Play Store and Aptoide.
- Pre-installed with mainstream overseas apps like Netflix, YouTube, and Prime Video.
- Supports playback of mainstream video formats via USB (MP4, MKV, AVI, MOV, TS, RMVB, FLV, etc.).
Hotel Commercial Mode: Supports features such as power-on signal source locking, volume limit, USB disabling, custom power-on logo, and settings cloning.
Child Lock: Set viewing time limits and content filtering easily.
Audio System
| Project | Details |
|---|---|
| Speaker Configuration | Two full-range drivers, rated power 2 × 10W |
| Acoustic Cavity Design | Optimized large cavity structure for enhanced bass performance |
| Audio Decoding | Dolby Atmos, DTS:X, DTS Virtual:X |
| Sound Effects Mode | Standard / Movie / Music / Sports / Custom EQ |
| Special Features | Automatic volume equalization, night compression mode |
| Audio Output Options | Supports Bluetooth audio output, optical digital output, and 3.5mm headphone analog output |
Interface Overview
| Interface Type | Quantity | Detailed Description |
|---|---|---|
| HDMI | 3 | HDMI 2.0 / 2.1 - supports 4K@60Hz input, with one port supporting eARC/ARC |
| USB | 2 | USB 2.0 - supports media playback from mass storage devices |
| AV Composite Input | 1 Group | Compatible with older set-top boxes and DVD players |
| Optical Audio Output | 1 | SPDIF, connects to a 5.1 channel amplifier or soundbar |
| Headphone Output | 1 | 3.5mm stereo output |
| Wired Network Port | 1 | RJ45 Ethernet port |
| Antenna Interface | 1 | 75Ω IEC, supports DVB-T2/T/C/ATSC/ISDB-T (configured per destination country) |
Global Wide Voltage
- Rated Voltage: 100-240V~ 50/60Hz
- Maximum Power: 4K Version: 60-75W | 1080P Version: ~90W
- Standby Power: < 0.5W
- Power Cord Plug: Compatible with EU, US, UK, AU standards, etc.
Safe Export Certifications
- CE: EU LVD + EMC Directives
- RoHS: Hazardous Substance Restrictions
- FCC: US Part 15 Class B
- UKCA: UK Market standard
- CB / EMC: IEC International Certification
Package Details List
- 55-inch TV Host × 1 (Screen covered with factory protective film)
- Left and Right Base Brackets × 2 + Fixing Screws × 1 Pack
- Remote Control × 1 (Infrared or Bluetooth Voice version depending on configuration)
- AAA Batteries × 2 (For Remote Control)
- Power Cord × 1 (Customized per export country destination)
- AV Adapter Cable × 1
- Multilingual User Manual × 1
- Warranty Card × 1
- Certificate of Conformity × 1
Key Product Features
Versatile Application Scenarios
Home Living Room
The 55-inch screen delivers an immersive theater-level viewing experience with ultra-sharp 4K HDR image effects.
Hotels & Executive Rooms
Elevates guest room class and provides modern intelligent entertainment and customized commercial welcome screens.
Mid-size Conference Rooms
Seamlessly connects to computers to showcase presentations and video calls with crisp 4K text legibility.
Exhibition Halls & Showrooms
Continuously loops 4K promotional media to showcase corporate visual identity and highlight brand products.
Digital Signage & Advertising
Enables Commercial Mode to lock playback contents, ensuring continuous and uninterrupted 24/7 operation.
Restaurants & Bars
Easily wall-mounted to stream high-definition live sports events, engaging customers and enriching atmosphere.
Frequently Asked Questions (FAQ)
The 4K Flagship version features a 3840×2160 resolution, 10-bit QLED quantum dot panel with 100% color gamut coverage, and advanced HDR (Dolby Vision, HDR10+). The 1080P Economy version provides a 1920×1080 resolution with an 8-bit color depth and standard sRGB 96% color coverage.
Yes, running on an ad-free global edition of Android TV / Google TV, it comes pre-installed with popular apps such as Netflix, YouTube, and Prime Video, and allows downloading additional applications directly via the Google Play Store.
Yes, it features a dedicated Hotel Commercial Mode that supports custom startup logos, signal source locking, volume limits, USB port disabling, and configuration cloning across multiple units.
The audio system includes two full-range 10W drivers supporting Dolby Atmos, DTS:X, and DTS Virtual:X decoding for clear dialogue and spatial surround sound performance.
Yes. The TV features 3 HDMI ports (including 1 eARC/ARC port for soundbars and AV receivers), optical digital audio output, 3.5mm headphone jack, 2 USB ports, and Bluetooth 5.0/5.2 connection options.
Yes, the television operates on a wide 100-240V~ 50/60Hz voltage range and can be supplied with localized power cords (EU, US, UK, AU standards) based on export requirements.
